Juki LU-1509N

Latest Sale 1955 +VAT

Single needle walking foot sewing machine with large hook & base


Juki LU 1509N


The standard Juki LU-1509N single needle type machine delivers the basic functions and performance best suited to the sewing of medium-heavy materials.

The stitch length can be easily adjusted up-to 9mm by the stitch dial. The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle and fitting of the bobbin winder on the front face of the machine arm.

The knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the manual knee-lifter.

The machine is equipped as standard with a safety clutch for preventing hook breakage, which is resettable by pressing a button, and a simple oil wick manual lubrication system.

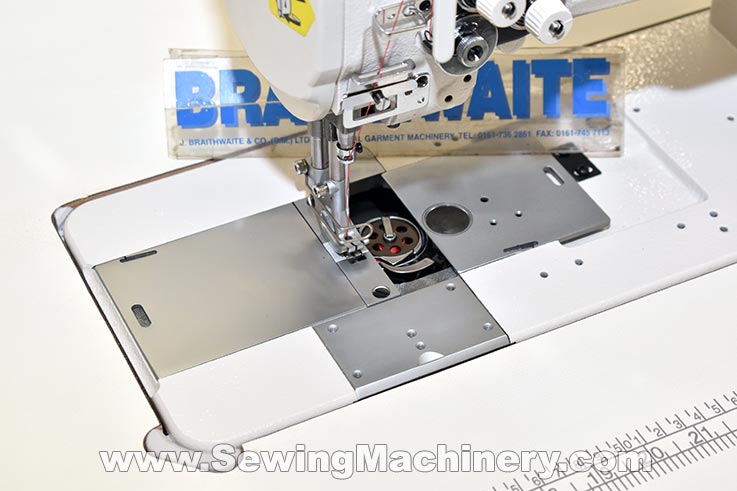

Juki LU1509N walking foot area

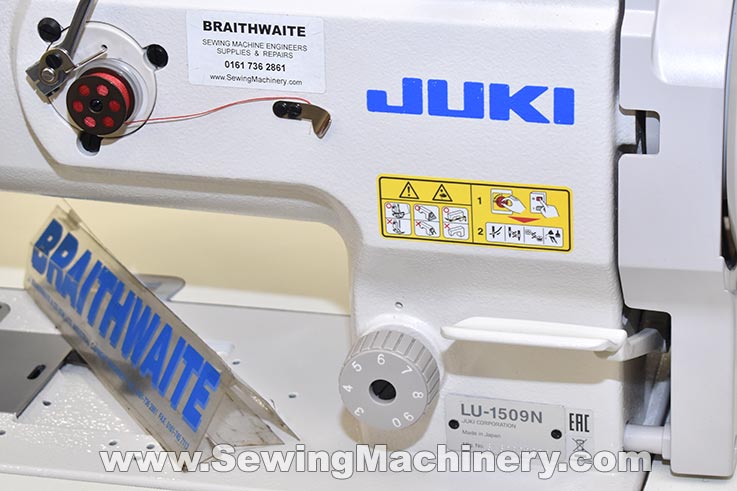

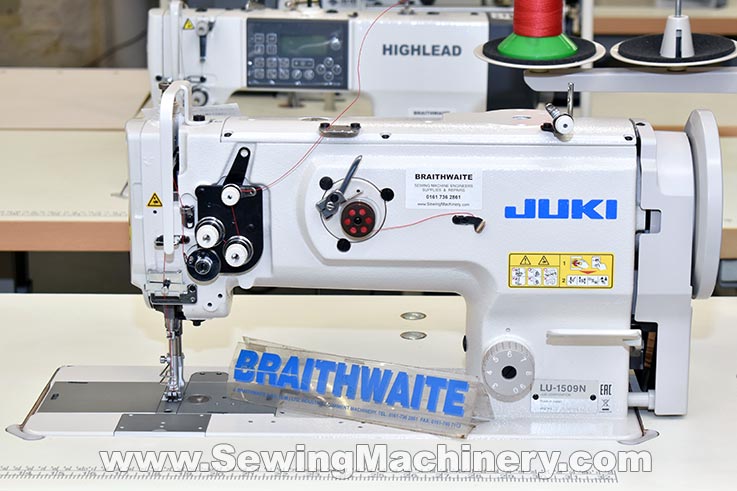

Photo of Juki LU-1509N standard model LU-1509NS

LU1509N Specification

Juki lu1509n spec


Juki LU1509N PDF leaflet


Next model up Juki LU-1510N with auto lubrication

Top of range Direct Drive Juki LU2810-7 model
